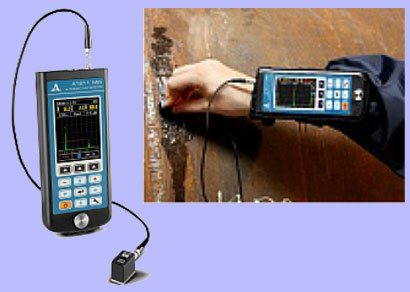

Tiny ultrasonic Flaw Detector A1211 Mini

Fully digital, small sized general purpose ultrasonic flaw detector. Provides an implementation of standard and specialized techniques of ultrasonic testing, performance, and accuracy.

Purpose

• Testing of weld seams
• Search of places of corrosion, cracks, internal stratifications and other flaws
• Finding out the coordinates and evaluating the parameters of the flaws in objects from metals and plastics
• Thickness measurement

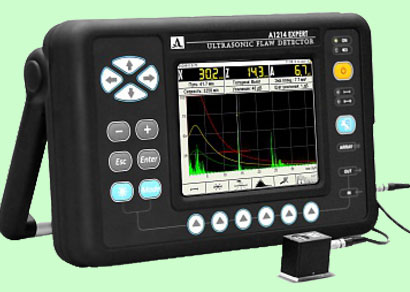

Ultrasonic Flaw Detector A1214 EXPERT

Fully-digital, small-sized flaw detector for common tasks. It features high measurement accuracy and speed and is suitable for wide range of testing tasks.

Purpose

• Testing of weld seams
• Search of places of corrosion, cracks, internal stratifications and other flaws
• Finding out the coordinates and evaluating the parameters of the flaws in objects from metals and plastics
• Thickness measurement

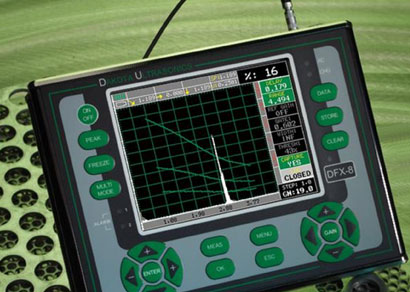

The DFX-8 Series

One on hand equals two on the job!

Flaw Detector:

• Sizing Toolkits: DAC, AWS, TCG, DGS.
• Exceptional visibility in sunlight (Blanview) transmissive color QVGA display (320x240 pixels).
• P.R.F. - 8 Hz to 2 kHz, adjustable
• Screen Refresh Rate: 60 Hz.
• Detection: Z-Cross, Flank & Peak.

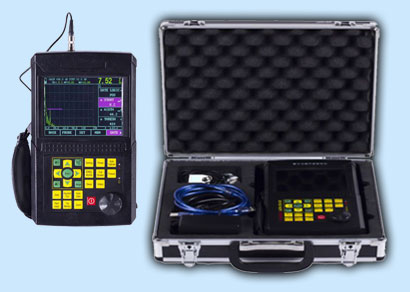

Digital Ultrasonic Flaw Detector Leeb522

Fully-digital, small-sized flaw detector for common tasks. It features high measurement accuracy and speed and is suitable for wide range of testing tasks.

Application Fields

Widely used in boilers, pressure vessels, aerospace, power, petroleum, chemical,marine, military, petroleum pipeline, ship manufacturing, automobile, machinery manufacturing, metallurgy, metal processing, steel structure, railway transportation, nuclear power, and relevant departments in colleges and universities.

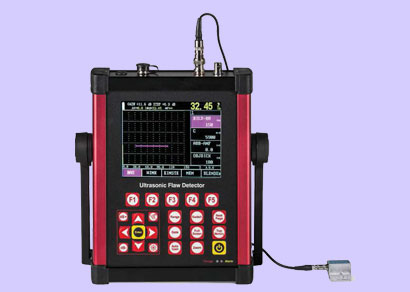

Uee Series - Ultrasonic Flaw Detector Uee952/953

Applications:

Application for quickly and accurately detection, positioning, evaluation and diagnosis of various flaws in the work-piece, such as cracks, welds, blowhole etc. It is widely used in electric power, petrochemical, boiler and pressure vessel, steel, military, aerospace, railway transportation, automobiles, machinery, and other fields.

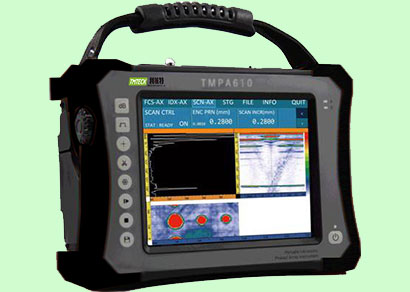

Ultrasonic Phased Array Flaw Detector TMPA 610

Functions & Features

• File & Entry Management System for Flexible Bridging between Setting(Focal Law & Model), Calibration and Inspection
• Modular Configuration : L-Scan, S-Scan, L-C-Scan, S-C-Scan, Butt-Weld, Crank Shaft , Pipeline, TOFD, UT(Conventional)
• 3D Simulation Model
• Image analysis
• Natural Structure of Heat Dissipation
• Dynamic Depth Focusing(DDF)
• Smooth Filtering
• Touch Screen
• ACG Calibration
• TCG Calibration
