Our Products - Coating Thickness Gauge

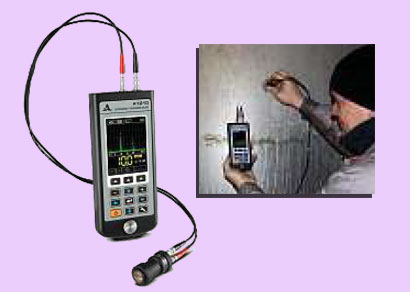

Ultrasonic Thickness Gauge A1210
The main feature of this thickness gauge is its possibility to pperate both with single crystal and double-crystal transducers. The patented algorithm of automatic adaption to the surface curvature and roughnes allows measurements on different surfaces and thicknesses without special adjustments of the device. The A-Scan feature allows ruling out false results considerably increasing the inspection reliability.
The large TFT display ensures the full visual control of the inspection process with the help of color indications. The magnetic holder helps to fix the thickness gauge safely to metal surfaces for comfort work at hard-to reach placs and at heights.

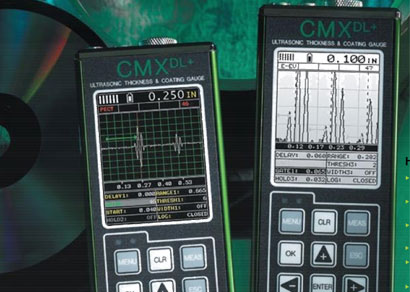

The CMX DL+
A/B Scan Material & Coating Thickness Gauges
The Finest in Portable Inspection!
Highlights:
- Powered by a 100MHz DSP platform using FPGA technology.
- Display Options: Grayscale 1/8 VGA/ AMOLED color 1/4 VGA.
- Two Channels-Dual pulsers and receivers.
- Up to 140Hz pulse repetition rate.
- Screen refresh: B&W 25 Hz, Color 120 Hz.
- Adjustable gain: -30 dB to 70 dB range.
- Automatic gain control (AGC).
- Time corrected gain (TCG).
- Data storage (32 Megabit of nonvolatile RAM).

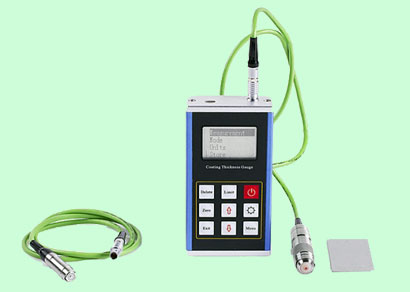

Coating Thickness Gauge Leeb 232
One on hand equals two on the job!
Function & Feature:
- Two methods of power off: Manual & Automatically.
- Limit settings: alarm if one of the measurement data is beyond of the limits.
- Deleting function: You can delete one of the doubtful data and you can also delete all of data in the memory to prepare for new measurement.
- Saving function: capable of 500 sets of measurement value.
- Five statistical data: Mean Value, Maximum Value, Minimum Value, Measurement, Standard Deviation.

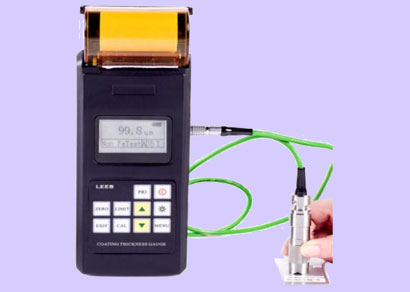

Coating Thickness Gauge Leeb 242
Function & Feature:
Widely used in boilers, pressure vessels, aerospace, power, petroleum, chemical,marine, military, petroleum pipeline, ship manufacturing, automobile, machinery manufacturing, metallurgy, metal processing, steel structure, railway transportation, nuclear power, and relevant departments in colleges and universities.

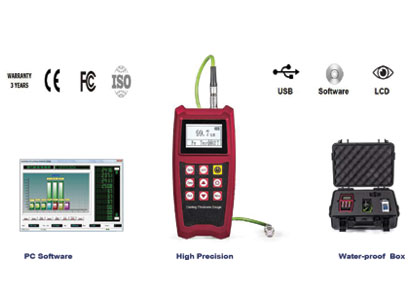

Uee Series - Coating Thickness Gauge Uee920
Applications:
- With high quality metal probes.
- Large memory to save 4 types of materials and 1560 testing values.
- Software for PC connection and data transmission, analysis.
- Two measuring methods:continuous and single;
- Two working mode: direct and batch;
- Limit setting function.
- Switch off automatically or manually.
- 3 ways for easy Calibration: by one specimen, two specimens or five specimens to finish calibration..
- Five statistics: Average, Maximum, Minimum, Testing times, Standard deviation.
- Standard delivery with 5 calibration specimens (48.5m?99.8m?249m?513m?1024m)
- 3 years warranty and life-long services

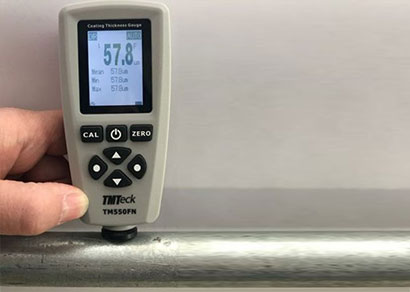

Coating Thickness Gauge TM 550 FN
Functions and Features :
- 128*128 dot matrix LCD display, standard menu operations.
- Two group mode: direct (DIR) and general(GEN), readings will be lost when power off in direct mode, and not be lost in general mode. 80 readings can be stored for each group.
- Zero point calibration and multi-point calibration(up to 4 points) for each group.
- User can recall, delete specified readings, or delete group readings.
- Statistics display: mean, minimum, maximum and standard deviation.
- Three probe mode: auto, magnetic and eddy current.
- User can set high or low limit alarm for each group.
- Power off automatically.
- USB interface to data transmission.

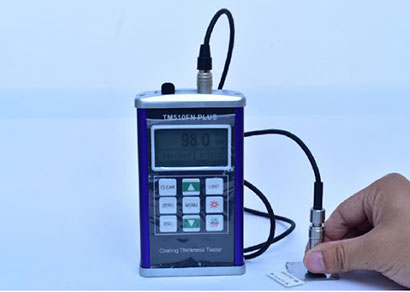

Coating Thickness Gauge TM 510 FN Plus
Functions and Features:
- Can use various probe (F400, F1, F1/90 °, F10, N1, N400, etc.) measurement.
- Three calibration methods: one point calibration, two point calibration, the basic calibration.
- Display resolution: 0.1 µm (measuring range of less than 100 µm) 1μm (range greater than 100 µm).
- Have five statistics, data storage 500.
- There are two shutdown: manual and automatic shutdown.
- Deleted features: the gross error and error settings can be deleted.
- Printing: Print Measurement, statistics, gauges, histogram.
- A music tone in the operation carried out at any time tips.
